CINELINE 'ANTARES'

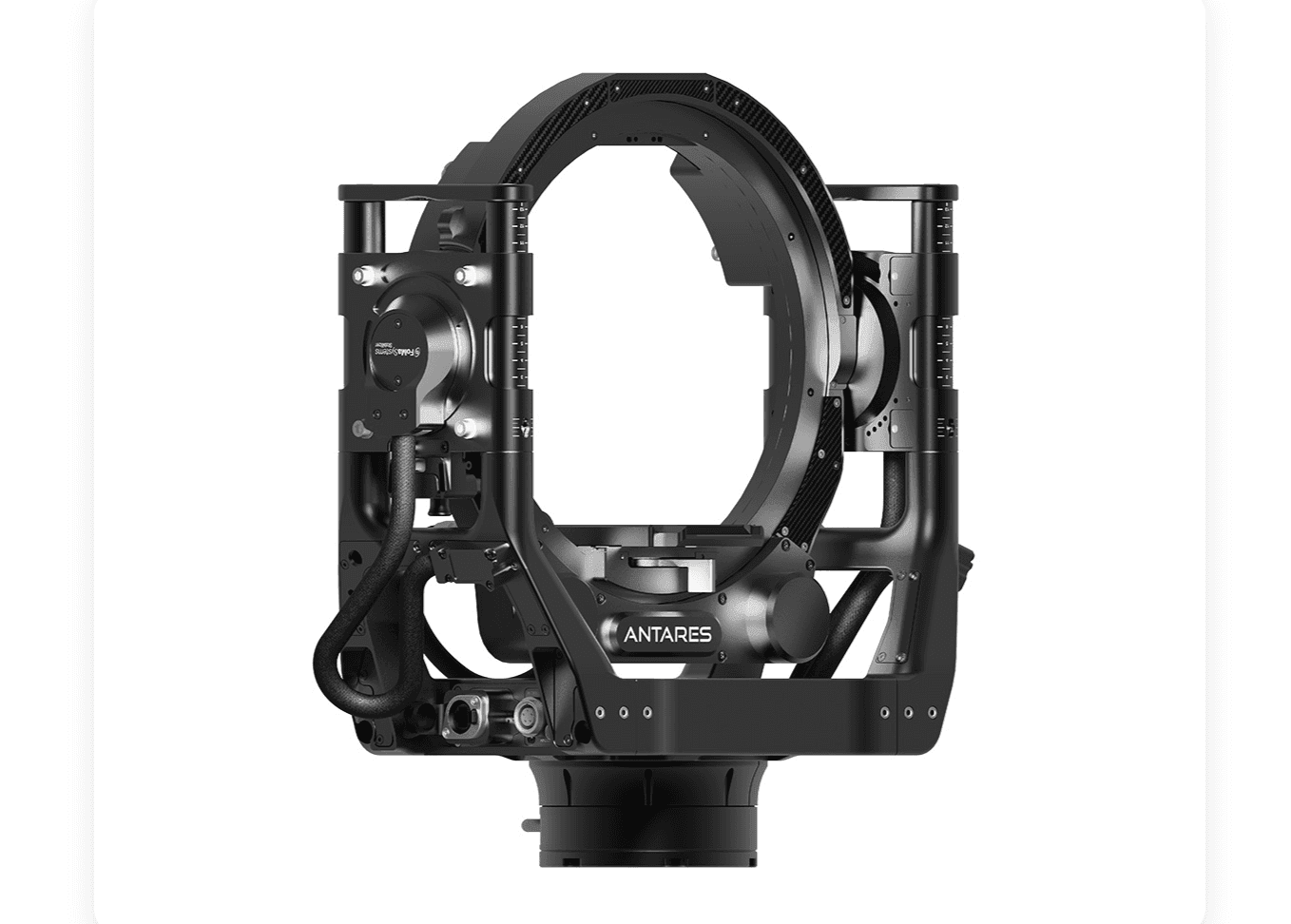

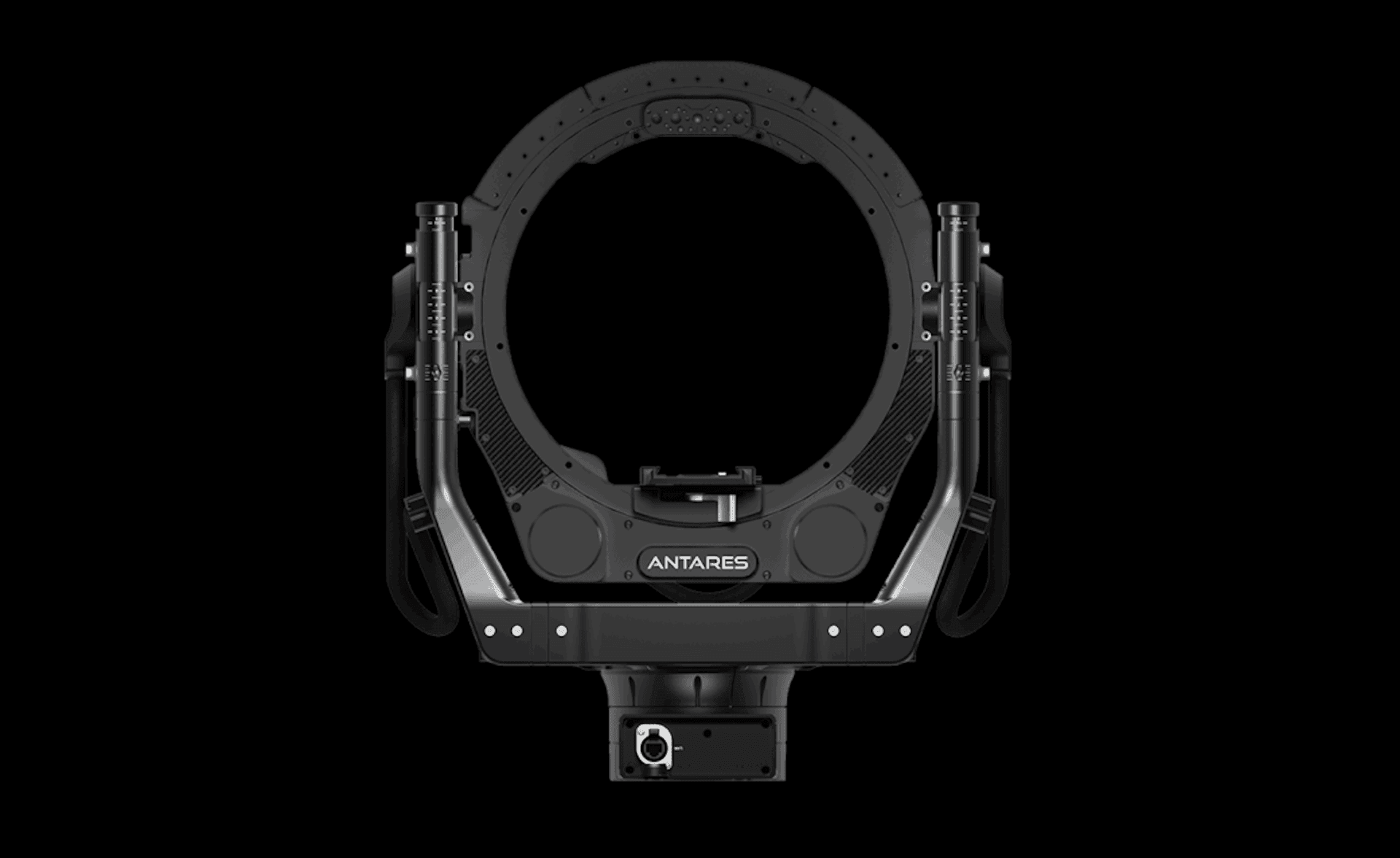

THE FoMa ANTARES - Three Axis wireless stabilised head.
FoMa Antares combines unmatched performance in a compact, rugged, and highly configurable design. With adjustable height and modular extensions, it adapts effortlessly to your setup, enabling the perfect configuration for both television and cinema workflows.

Antares accessories

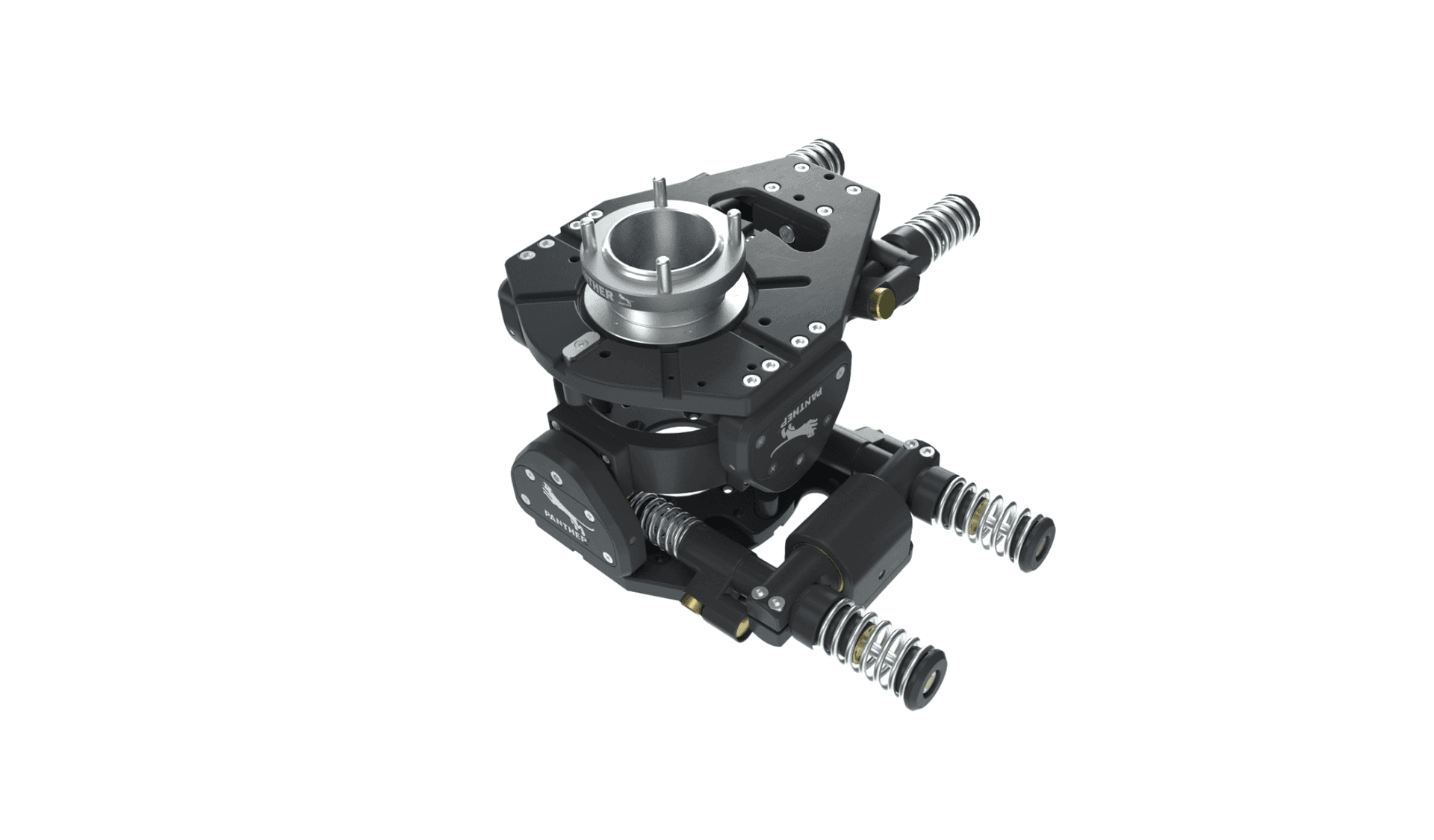

Panther Iso Dampener Pro

Disturbing horizontal crane vibrations are absorbed by the ISO Dampener Pro. Remote heads but also stabilized heads will be supported additionally to achieve a perfect result. It can be combined with Cranes and Shock Absorbers.
The compact design is extremly flat. The maximum payload is 90 kg / 198 lbs.

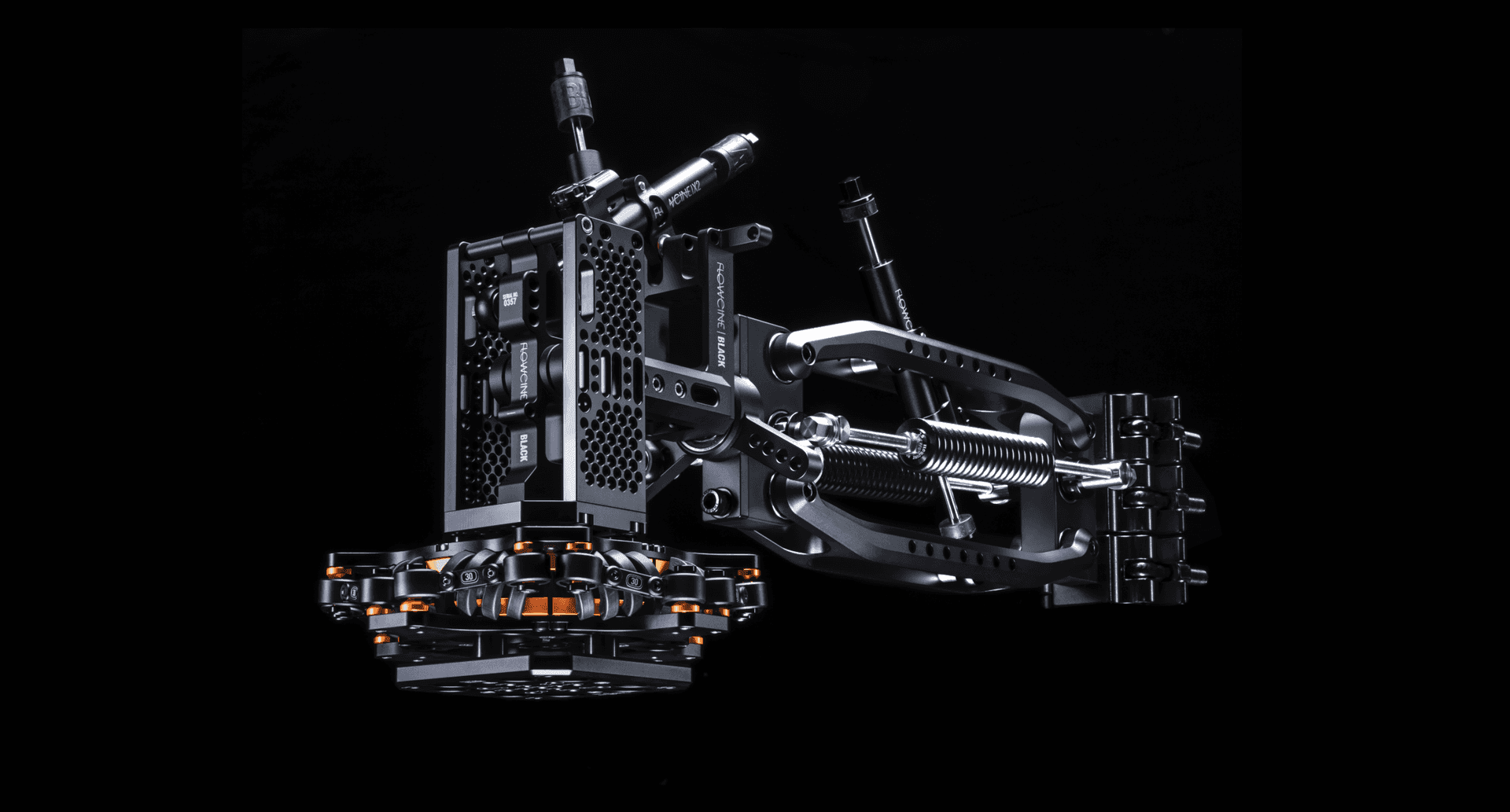

The Black Arm

The Black arm is a 3-axis dampening system with a additional vibration mount for stabilizing roll and tilt errors as well as vertical motion and vibrations. The Black arm is a hardmount system, for mounting to vehicles such as tracking vehicles, cars, ATVs, boats, snowmobiles etc.

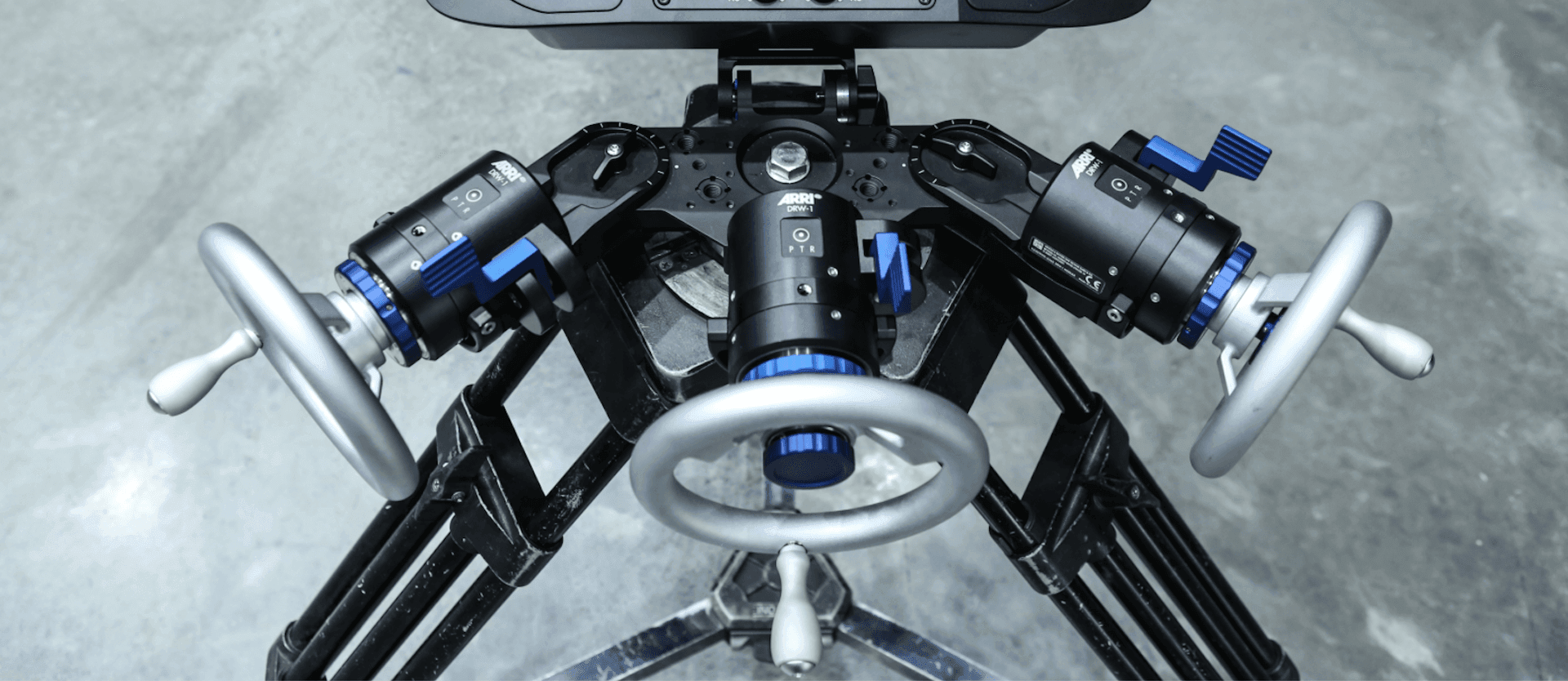

Arri pan, tilt and roll wheels

The DRW-1 combines state-of-the-art digital technology with components inspired by earlier generations of the ARRIHEAD. The heavy, hand polished, precision-engineered crank wheels are the same as were used on the mechanical ARRIHEAD. Bringing a mechanical touch and feel to a digital workflow, they provide operators with maximum control by producing a smooth, linear information stream, and enabling operators to trust their muscle memory.

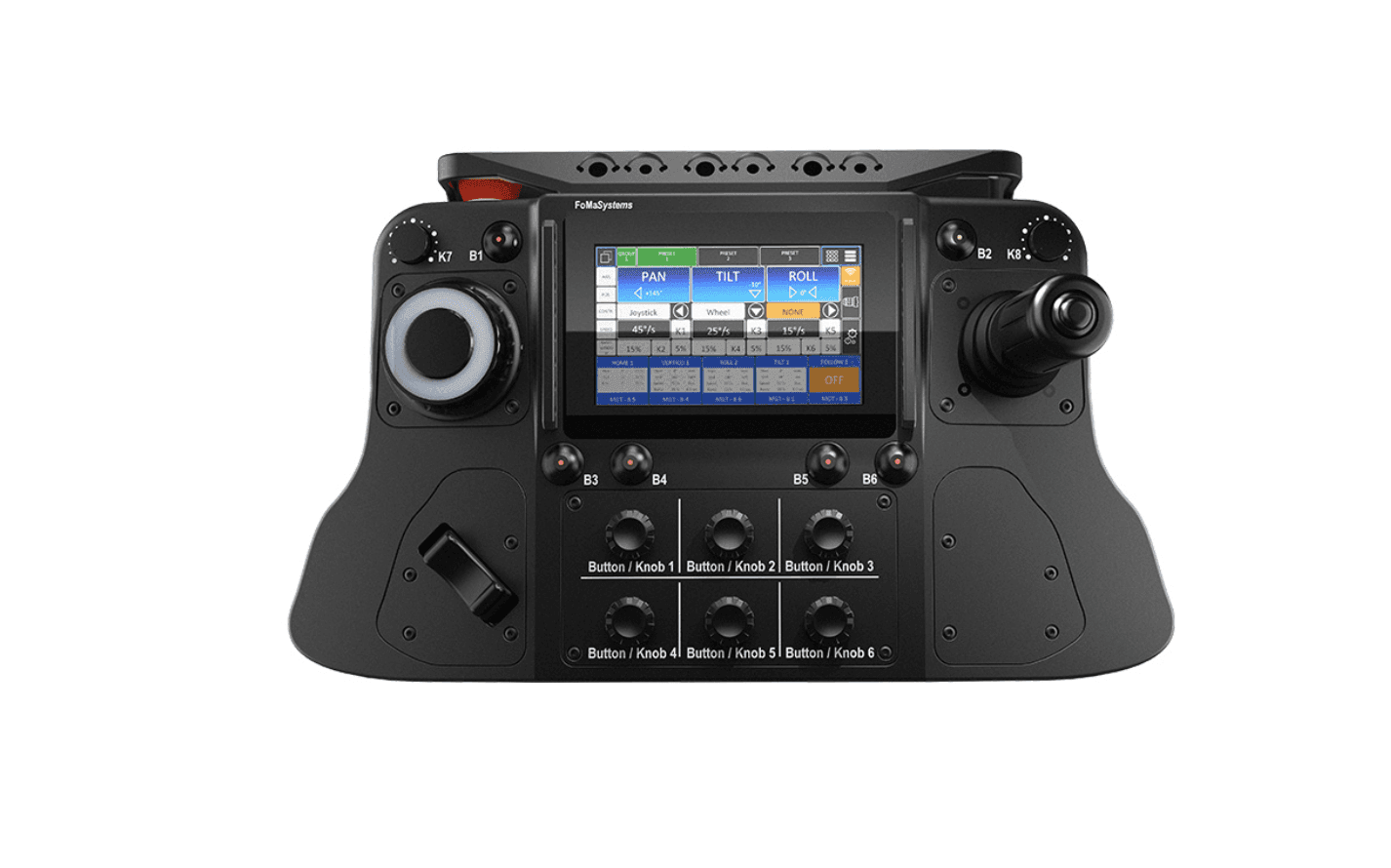

RCP-2 EVO - Control desk

The RCP-2 EVO mechanical design is based on the already proven RCP-2 concept. Compatible with the every system running on the FoMa’s Evolve OS makes it a perfect tool for smooth operation.

The outstanding performance and intuitive UI operating provides you with a user-friendly device with a short familiarization time.

The new Touchscreen Display provides you with great responsiveness and much brighter screen under bad conditions. We have also updated the controls with Jog-Wheel controllers and provide you with fast accessibility and control of the system.

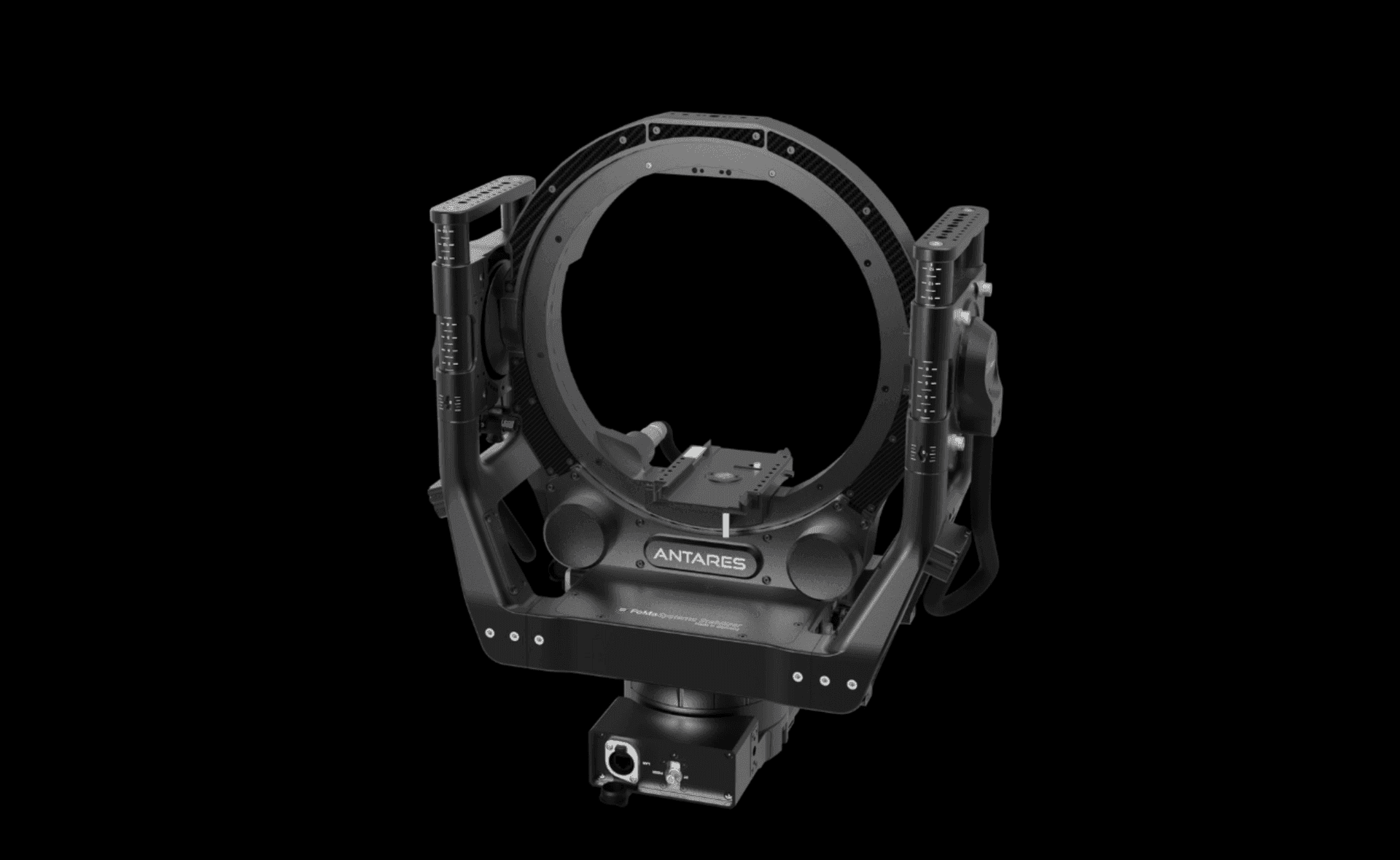

SLIP-RING CONFIGURATION

This configuration is equipped to meet the requirements of any production. Minimal weight, and compact size make Antares the ideal solution for any workflow. A SDI video slip-ring, developed especially for FoMa Systems enables the Antares to provide a stable and reliable data stream without limitation in the pan axis.

Specifications

Stabilized Remote-Head 12“ Slip-Ring SDI

Minimal Height: 492mm / 19,37 in
Maximal Height:
621 mm / 24,45 in
(standard extensions 100mm)
701 mm / 27,59 in
(optional extensions 180mm)

Weight: 13.8kg /30.4 pounds

Roll axis with a diameter of 11 inches
(usable diameter of 260 mm / 10.24 in)

Payload up to 23,5kg/52 pounds

Hardware Platform - Forge
Software Platform - Evolve OS

Wireless: ERM-2400 2.4 GHz RXD-TXD Pro Set. Range: Up to 1000 meter / 3280 ft.

Meta Data Output Stream suitable for Augmented Reality (AR), record and playback and Third-party integration. (A protocol description may be required)

System control over Ethernet trough LAN / WAN (additional IP-Box needed) or Foma FS CAN

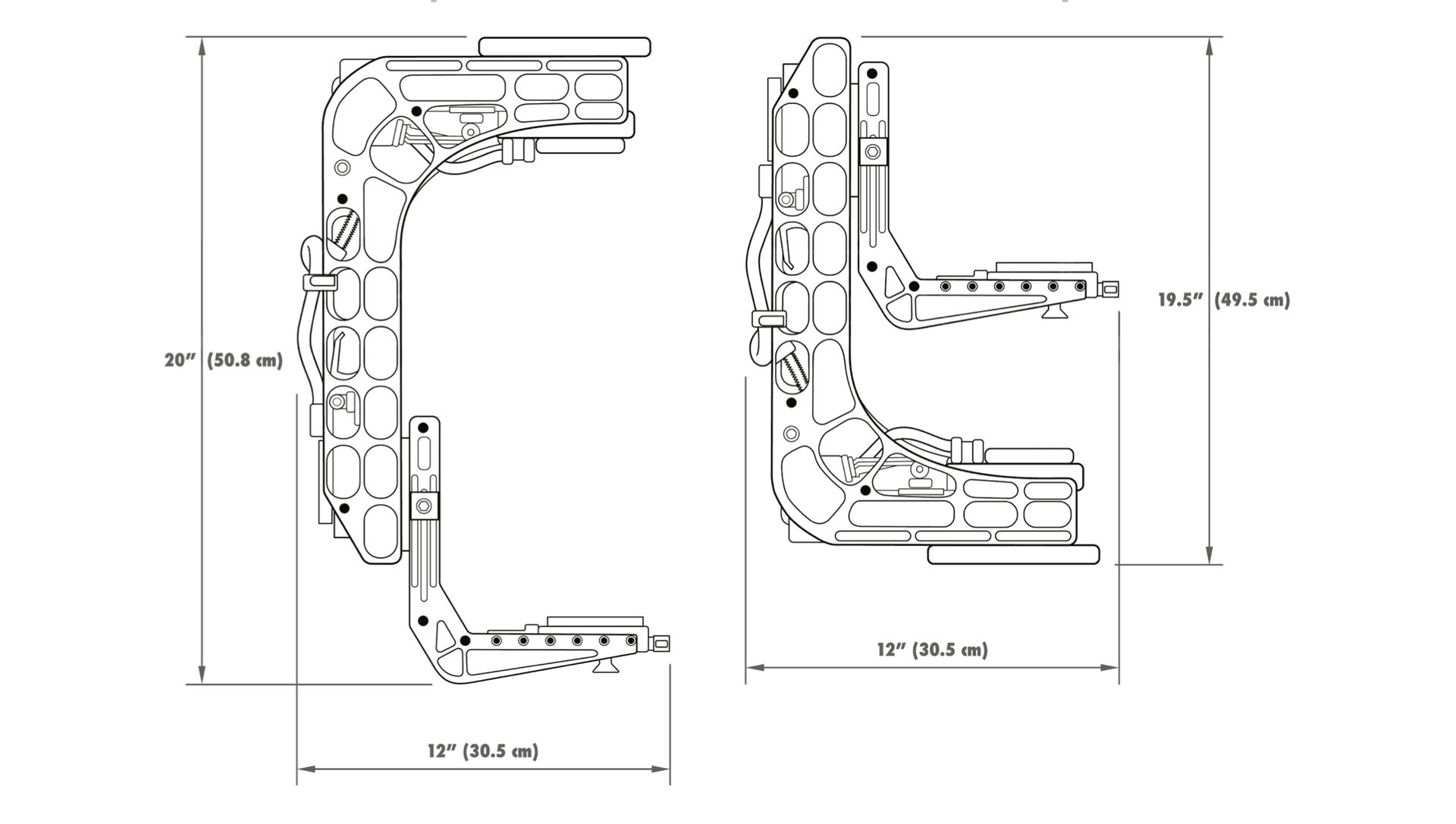

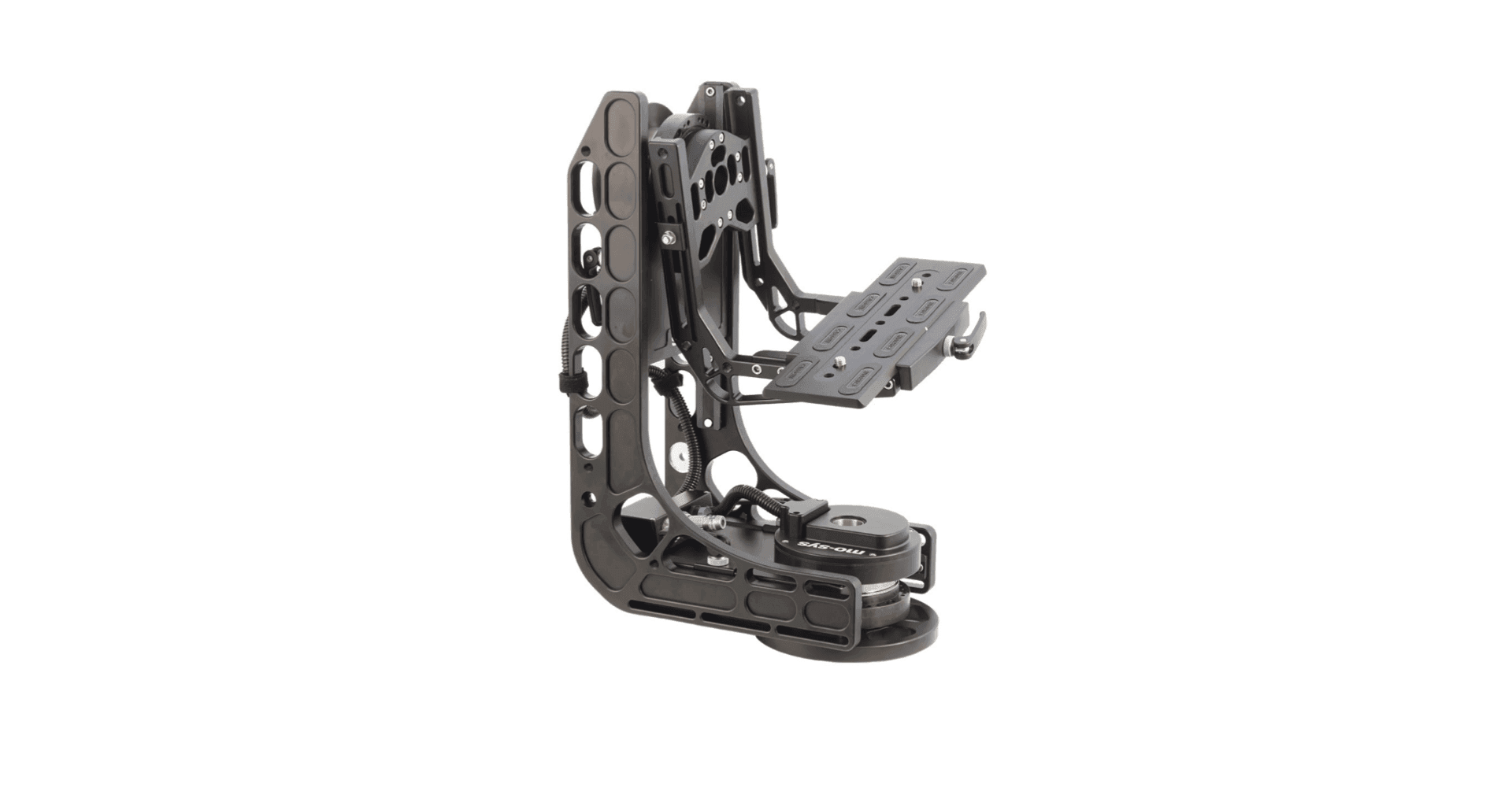

Mo-Sys L40 Wireless remote head

The Mo-Sys L40 is the newest in a line of light-weight, extremely strong remote heads. It was designed as a simple, “tech-less” system with all the functionality expected of a modern digital remote head, including a gyro assist back-pan. This is a feature generally only available on technician operated, fully gyro-stabilized systems. The L40 is ready out of the box, one cable to the head and power to the console. Mount your camera, press enable and
shoot.

Mo-Sys L40 accessories

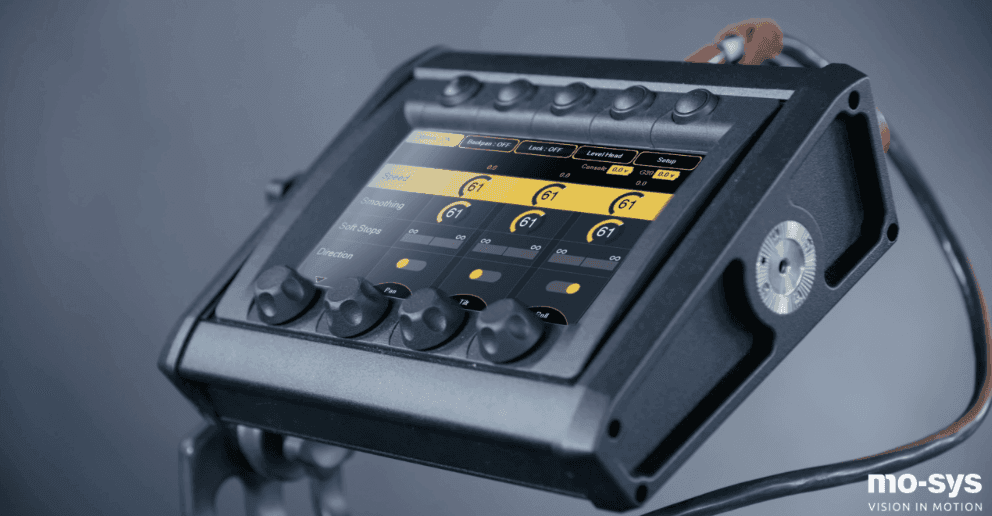

Mo-Sys Touchscreen Console

The Touch/Dial console for the L40. It comprises a shallow menu structure, a display showing the operator current parameter settings, and physical controls for direct, tactile, intuitive operation. This is the optimum interface for stressed production environments, where changes need to be fast and delays minimised.

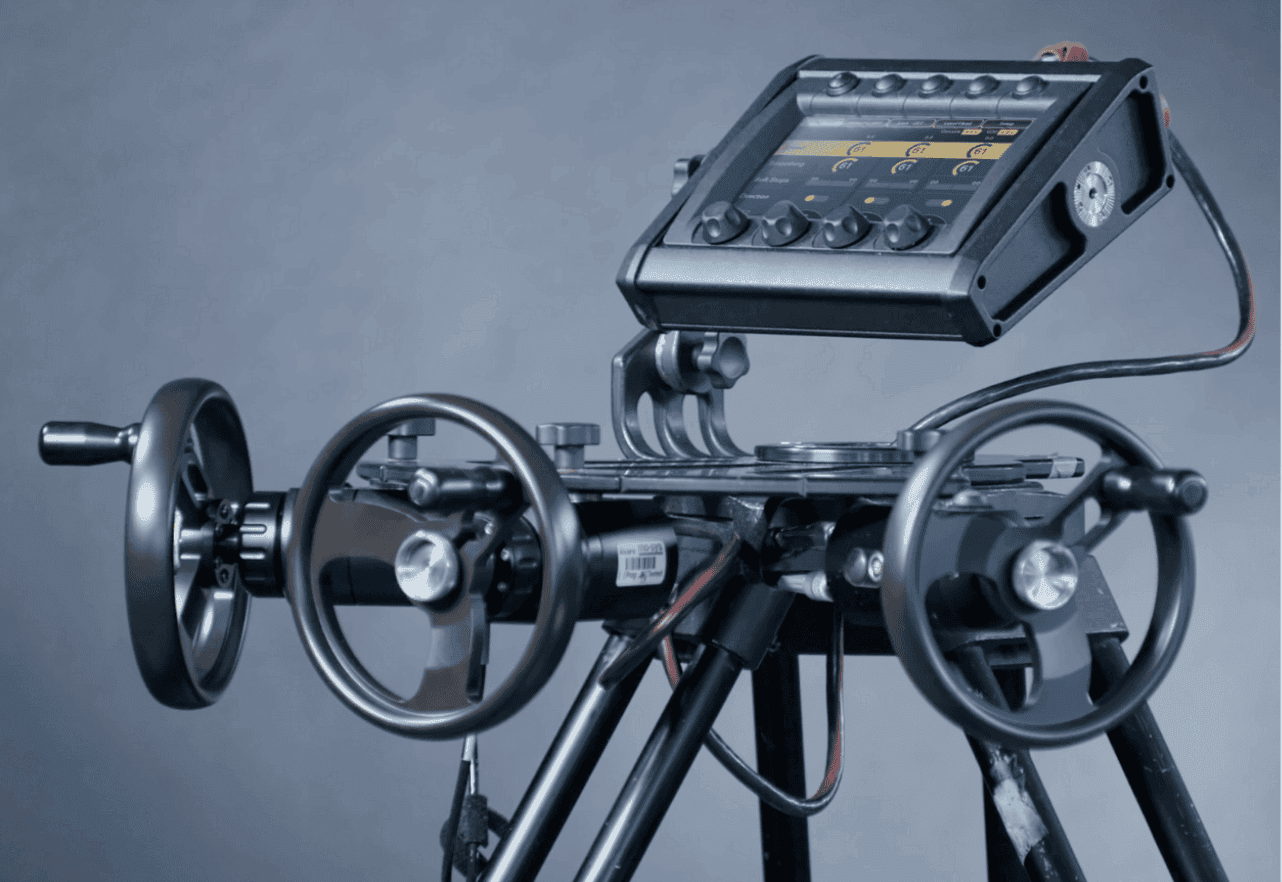

Mo-Sys L40 wheels

Extremely strong and backlash-free drive units gives the operator instant and delay-free control. The precise gear drive enables flawless operation even with the biggest zoom lenses.

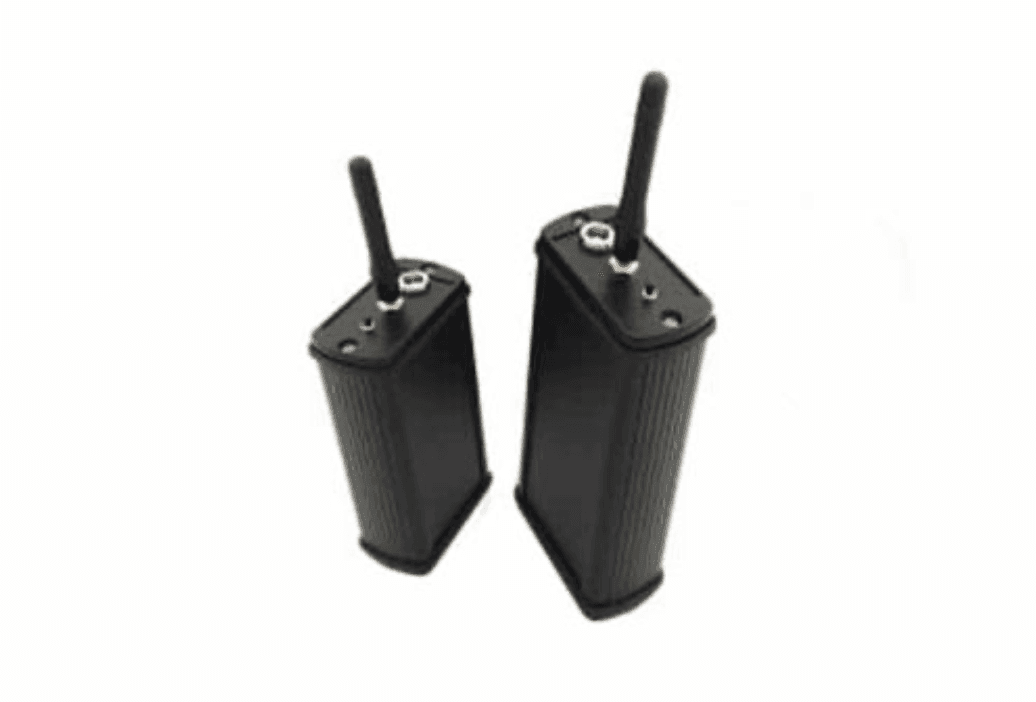

Cineline Wireless controll

Radio technology offers a wireless solution for operating our remote heads. As a simple cable replacement, with 8ms it has virtually no delay and offers almost instant responsiveness.

Mo-Sys L40 tech spec

Weight 18 kg (40 lbs)
Payload 40 kg (88 lbs)
Pan/Tilt speed 180 °/sec
Pan/Tilt range ±720
Max system bus length 100m
Max wireless operating distance 300m
Power 15-32V
Mains With PSU 110V-200V

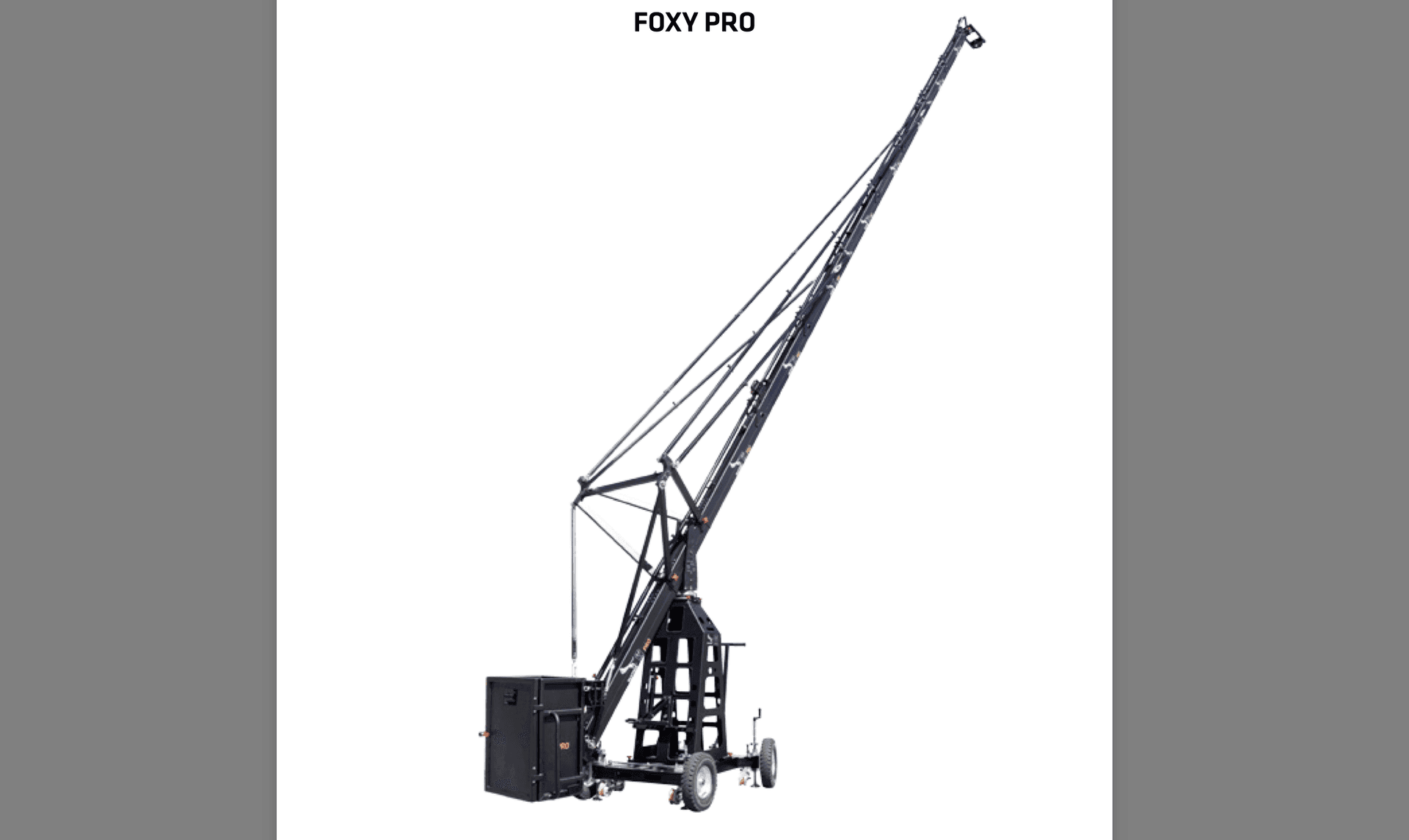

Panther Foxy Pro Crane

The Foxy Pro Crane by Panther is a modular tool on set, easy to set up with equal outriggers.

With the GS unit you can easily build it as a crane up to 8,20 meters for lightweight remote heads. It can be used on any dolly and a lot of bases thanks to the euro-mount adapter end.

Thanks to the hardness of its structure, it’s ideal for situations where the rigidity of the arm is essential without making it difficult to build.
